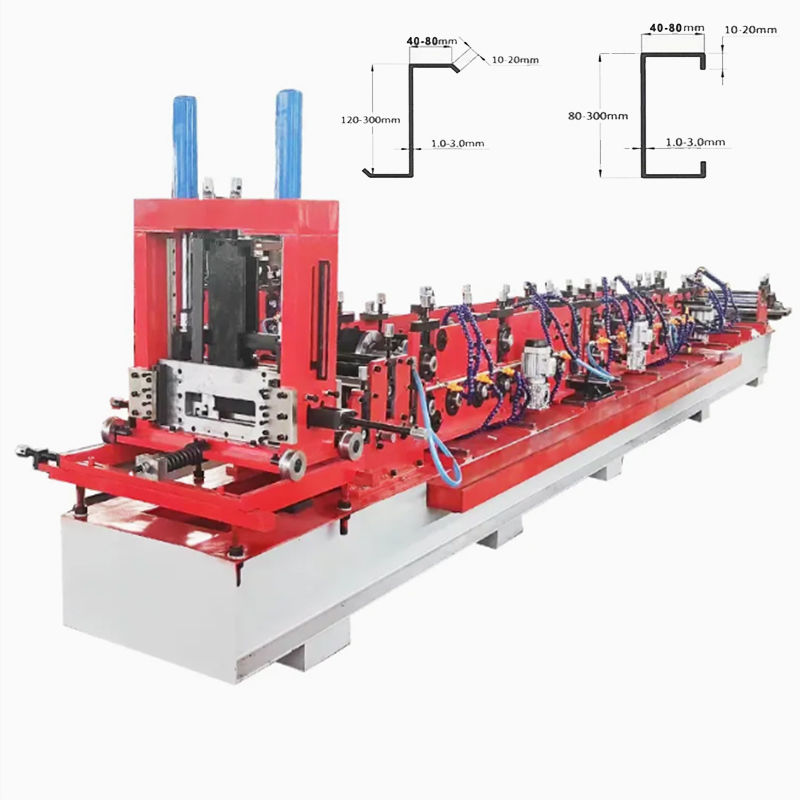

Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame

2mm C purlin roll forming machine

auto size changeable roll forming machine

steel frame C purlin machine

Lugar de origem:

Continente da China

Marca:

CZ Channel Manual Adjustable Purlin Roll Forming Machine

Certificação:

ISO CE

Número do modelo:

Contacte-nos

Solicite um orçamento

Detalhes do produto

Nome do produto:

Máquina de formação de roll de purlin de tamanho automático de tamanho automático 2 mm C para estrut

Matéria-prima:

Galvalume, galvanizado

Dimensão (l*w*h):

8000 mm* 1500 mm* 1500

Espessura do material:

1-2,2 mm

Peso:

4,8 t

Capacidade de produção:

10-28m/min

Tensão:

380V/50Hz/3ph

Poder do motor principal::

15kw

Destacar:

2mm C purlin roll forming machine

auto size changeable roll forming machine

steel frame C purlin machine

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

negotiable

Detalhes da embalagem

40 'FLC

Tempo de entrega

30 dias úteis

Termos de pagamento

L/C, T/T, D/A, D/P

Habilidade da fonte

20 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

Máquina automática de moldagem a frio de rolos para Z/c Purlin

Obtenha o melhor preço

Vídeo

CU CZ estribo canal estribo touch screen linha de formação de rolos de purlin

Obtenha o melhor preço

Vídeo

Rolo do Purlin da CZ do Eave de 16 Raws que forma a máquina 3 economia de energia da fase 360V 60HZ

Obtenha o melhor preço

Vídeo

Rolo de pouco peso do painel que forma o rolo do Purlin da seção do Sigma da máquina anterior

Obtenha o melhor preço

Contacte-nos

86-317-2016816

Contacte agora

Descrição do produto

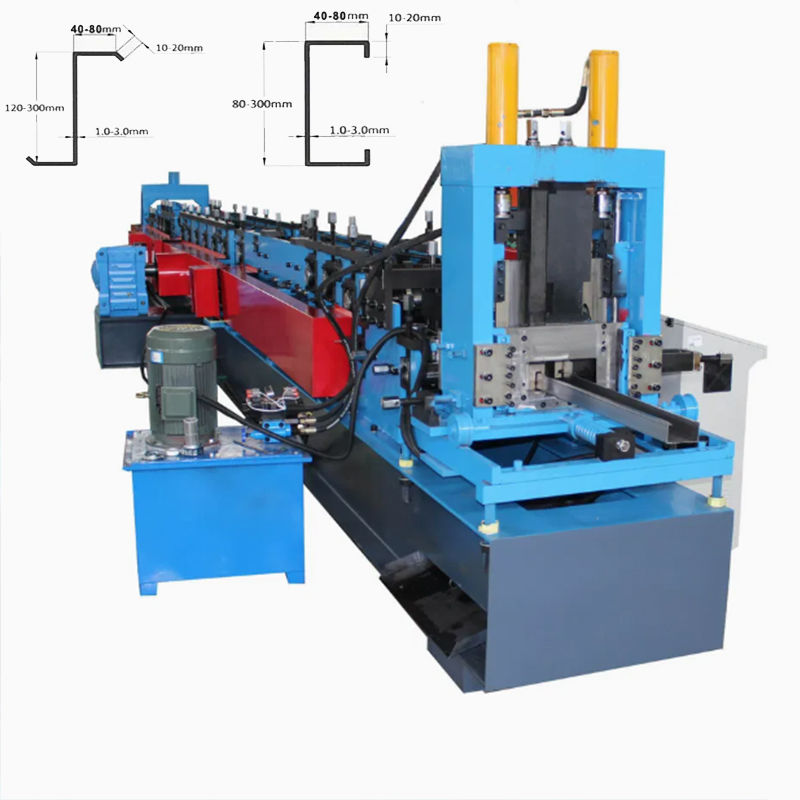

Auto Size Changeable 2 Mm C Purlin Roll Forming Machine For Steel Frame

PLC control Size Roof structure Purlin Machine CZ Purlin Roll Forming Machine is a special equipment for producing CZ steel (C and Z steel), mainly used in the construction and industrial fields to manufacture roof and wall support structures.

Main Features

High automation: It has automatic feeding, forming, cutting and other functions to improve production efficiency.
High precision: Ensure that the size and shape of the steel meet the design requirements and ensure installation accuracy.
Multi-function: It can produce C and Z steel to meet different needs.
High efficiency: Automated operation greatly shortens the production cycle and reduces labor costs.

Working Principle

Feeding: Metal coils enter the equipment through the feeding device.
Forming: Through multiple rolling processes, the metal material is processed into C or Z shape.
Cutting: Cut the formed material according to the set length.
Output: The finished steel is output for subsequent processing or direct use.

Application Field

Building structure: Used for roof and wall support structure.
Industrial plant: Used for roof and wall support of industrial plant.
Warehousing facilities: Support structures for large warehouses.

Advantages

Reduce costs: Automated production reduces labor and material waste.
Improve quality: High-precision equipment ensures the quality of steel.
Shorten cycle time: Automated processes speed up production.

CZ Purlin forming machines are key equipment in the construction and industrial fields. Through automated and high-precision processing, they meet the manufacturing needs of C- and Z-shaped steels and improve efficiency and quality.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm - 3.5 mm
3	Working Speed	15-20 m/min (not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard
