High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm

High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm

Thickness 30-300mm Sandwich Panel Roll Forming Machine

13 Stations EPS Sandwich Panel Machine

100mm Diameter Shafts Rock Wool Sandwich Panel Machine

Marca:

FMS

Model Number:

FMS-sandwich

Contacte-nos
Solicite um orçamento
Detalhes do produto
Uso:
Isolamento
Espessura da placa lateral:
16 mm
Diâmetro dos eixos:
100mm
Grossura:
50-300
Formando etapas:
13 Estações
Marca de motor:
Lichao
Velocidade:
1-6 m/min
Poder hidráulico do motor:
32kW
Destacar:

Thickness 30-300mm Sandwich Panel Roll Forming Machine

,

13 Stations EPS Sandwich Panel Machine

,

100mm Diameter Shafts Rock Wool Sandwich Panel Machine

Termos de pagamento e envio
Quantidade de ordem mínima
1
Preço
25000-50000usd
Detalhes da embalagem
Nu
Tempo de entrega
40
Termos de pagamento
T/T.
Habilidade da fonte
1000
Descrição do produto
Thickness 30-300mm Rock Wool And Eps Foam Sandwich Panel Integrated Machine With High Speed
Product Description

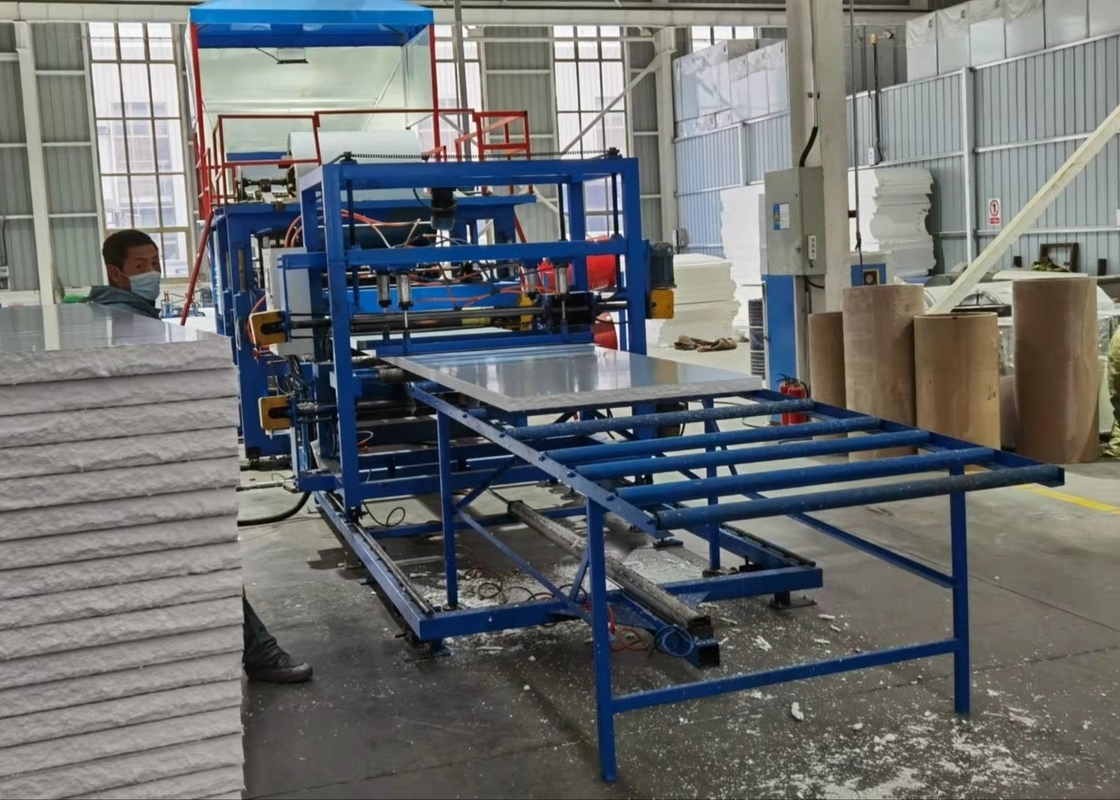

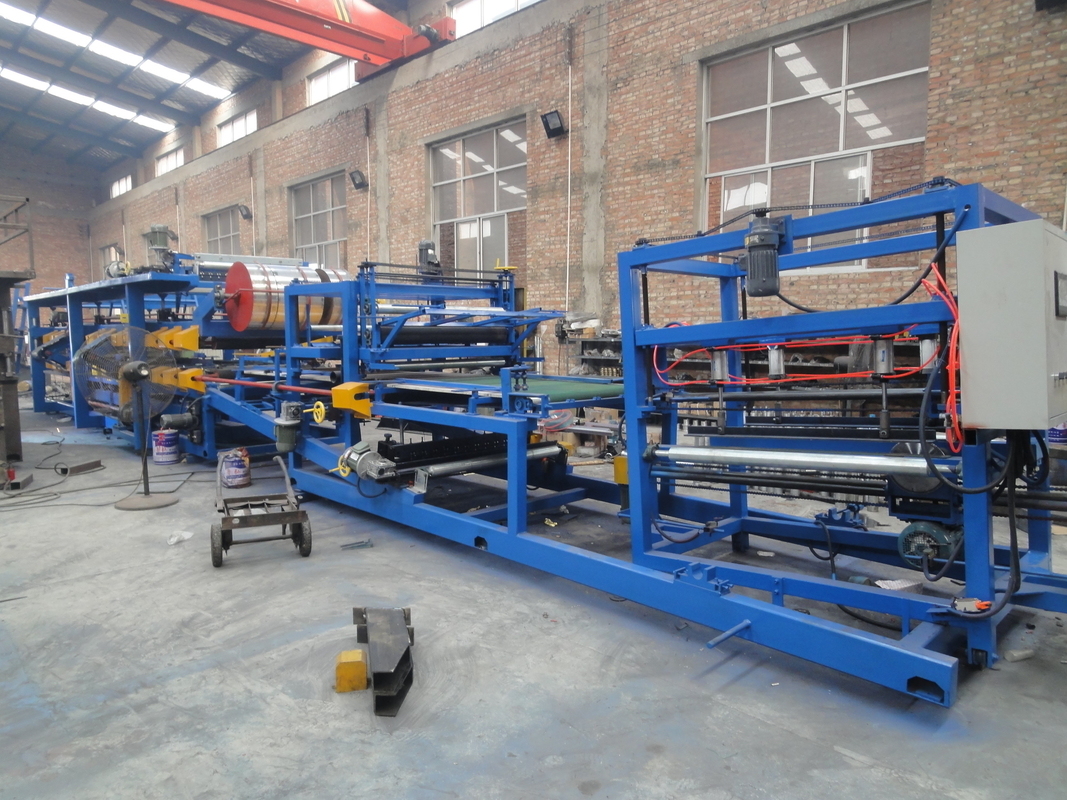

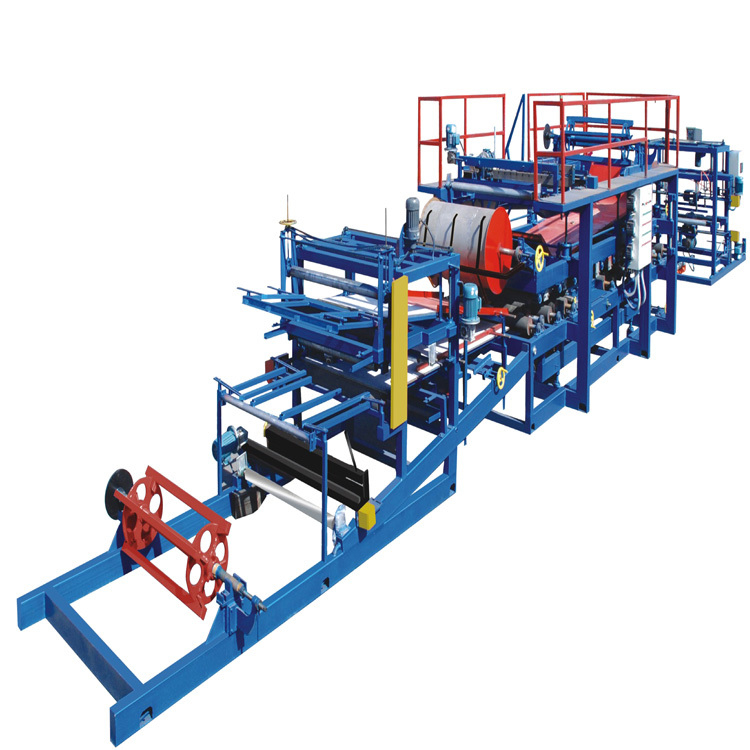

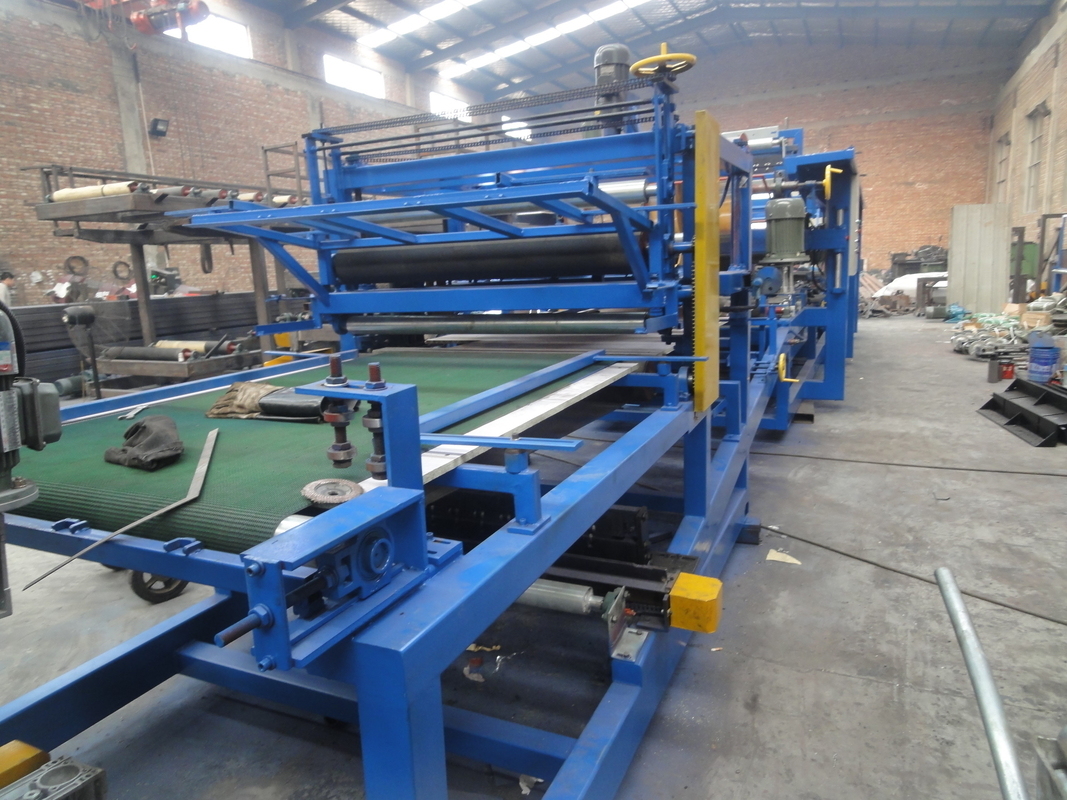

The Sandwich Panel Roll Forming Machine is an essential piece of equipment for the production of EPS sandwich panels, specifically designed to create sandwich roof panels and wall panels with high efficiency and precision.
Key features include:
  • Advanced transmission system with gears and sprockets for smooth, reliable operation
  • Versatile thickness range of 50-300mm for various insulation requirements
  • Cr12 heat-treated blades for durability and precise cutting with clean edges
  • 100mm diameter shafts for stability and continuous production capability
  • High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm 0

Technical Parameters
Parameter Specification
Forming Steps 13 Stations
Thickness 50-300mm
Control PLC Control System
Diameter Of Shafts 100mm
Cutting Mode Hydraulic Guide Column
Roller Cr15
Speed 1-6m/min
Hydraulic Motor Power 32KW
Material Of Blade Cr12 Heat Treatment
Roller Material Cr12
Applications
This versatile machine is ideal for producing various sandwich panels for construction applications, including:

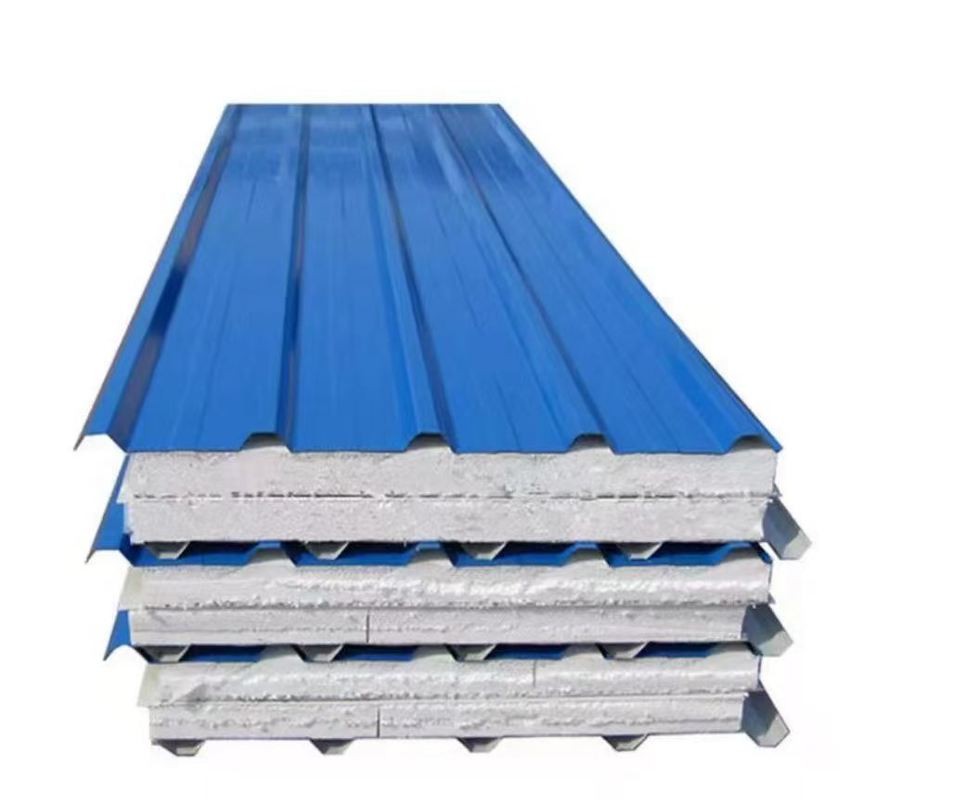

  • Sandwich roof panels
  • Wall panels
  • Rock wool sandwich panels
  • Residential and commercial building panels
The machine features a reliable gear/sprocket transmission system and Lichao motor brand for optimal performance in production lines.
Support and Services
Comprehensive technical support is available, including:
  • Installation assistance
  • Troubleshooting support
  • Maintenance guidance
  • Detailed product manuals and training materials
Frequently Asked Questions
Q: What is the brand name of this Sandwich Panel Roll Forming Machine?
A: The brand name is FMS.
Q: What is the model number of this machine?
A: The model number is FMS-sandwich.
Q: Where is this Sandwich Panel Roll Forming Machine manufactured?
A: It is manufactured in China.
Q: What type of panels can be produced using this machine?
A: This machine can produce a variety of sandwich panels, including those with different core materials and thicknesses.
Q: Is technical support available for this machine?
A: Yes, technical support is provided by the manufacturer to assist with any inquiries or issues related to the machine.
