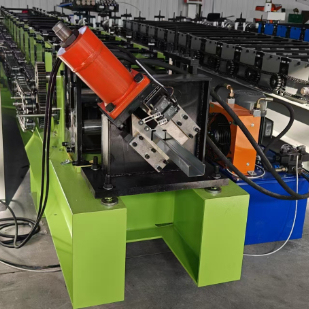

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

High Straight Level CZ Purlin Roll Forming Machine

Crush Resistance Automatic Purlin Roll Forming Machine

1.5-3MM Thickness Steel Purlin Roll Forming Machine

Lugar de origem:

CHINA

Marca:

FMS

Certificação:

CE,ISO

Contacte-nos

Solicite um orçamento

Detalhes do produto

Tensão:

380V 50Hz 3fase

Peso:

8500 quilogramas

Material do rolo:

45# aço cromo

Grossura:

1.5-3mm

Tipo de corte:

Corte hidráulico

Sistema de controle:

Plc

Principais pontos de venda:

Automático

Capacidade de produção:

30 m/min

Principal principal:

7.5kW

Destacar:

High Straight Level CZ Purlin Roll Forming Machine

Crush Resistance Automatic Purlin Roll Forming Machine

1.5-3MM Thickness Steel Purlin Roll Forming Machine

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

negotiable

Detalhes da embalagem

A máquina principal está nua, a caixa de controle do computador é embalada por plástico.

Tempo de entrega

30 dias

Termos de pagamento

T/T, Western Union, l/c

Habilidade da fonte

20 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Obtenha o melhor preço

Vídeo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Obtenha o melhor preço

Vídeo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Obtenha o melhor preço

Vídeo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Obtenha o melhor preço

Contacte-nos

86-317-2016816

Contacte agora

Descrição do produto

Full Automatic Strip Steel C/Z/U Purlin Roll Forming Machine

Product Advantages

Our C/Z purlin interchangeable roll forming machine offers superior performance compared to competitors:

Produces purlins with exceptional straightness and crush resistance
Enables reverse lap capability for Z purlins, enhancing connection strength
Precision control via reduced motor and frequency regulation for speed, length, and positioning
Quick and easy interchangeability between C and Z profiles

Purlins are essential structural components in roofing systems, supporting rafters and roof beams. Our machine produces lightweight steel purlins that perfectly meet roof structure requirements while maintaining strength and durability.

Applications: Ideal for medium-sized industrial and civil construction projects including factories, warehouses, aircraft hangars, exhibition halls, theaters, stadiums, and commercial buildings as primary load-bearing structures.

Technical Specifications

Main motor power	7.5kw
Hydraulic motor power	4kw
Hydraulic Pressure	10-12MPa
Voltage	380V/50HZ/3Phase
Control System	PLC (Delta brand)
Feeding Material	Galvanized steel
Feeding Thickness	1.5-4.0mm
Speed	30-50m/min
Roller station	18 rows
Shaft diameter	80mm
Shaft material	45# steel
Roller material	45# steel
Cutter material	Cr12 quenched
Dimension	1100012001500mm
Weight	about 6700 kg

Warranty & Guarantee

1-year guarantee against manufacturing defects (excluding electrical components)
Warranty void in cases of:
- Damage from natural disasters
- User error or improper operation
- Unauthorized modifications
- Damage during relocation after installation

Payment Terms

40% advance payment required
60% balance payment before shipment

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 30 days after receiving down payment
