2025 factory price Prepainted Galvanized Steel Floor Deck Roll Forming Machine

prepainted galvanized steel floor deck machine

factory price roll forming machine

floor deck roll forming machine with warranty

Lugar de origem:

China continental

Marca:

FMS

Certificação:

ISO CE

Contacte-nos

Solicite um orçamento

Detalhes do produto

Nome do produto:

Fabricante de linhas formadoras de rolos para piso de aço galvanizado

Tamanho:

380v/50hz,3 fases ou conforme sua solicitação

Peso:

8.000 kg

Tipo de corte:

Corte hidráulico

Sistema de controle:

Motor, Bomba, Motor, PLC

Principais argumentos de venda:

Longa vida útil

Largura de alimentação:

1200 mm

Material dos rolos:

Aço #45 com revestimento de cromo duro

modo de corte:

Corte hidráulico

Espessura de rolamento:

0,8-1,5mm

Destacar:

prepainted galvanized steel floor deck machine

factory price roll forming machine

floor deck roll forming machine with warranty

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

negotiable

Detalhes da embalagem

40 'FLC

Tempo de entrega

30 dias úteis

Termos de pagamento

L/C, T/T, D/A, D/P

Habilidade da fonte

20 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

2025 factory price Prepainted Galvanized Steel Floor Deck Roll Forming Machine

Obtenha o melhor preço

Vídeo

2025 Prepainted Galvanized Steel Floor Deck Roll Forming Machine

Obtenha o melhor preço

Vídeo

2025 high Strenth Steel Floor Deck Roll Forming Machine

Obtenha o melhor preço

Vídeo

perfil de 1.2mm que pressiona a máquina de Dot Floor Deck Roll Forming

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

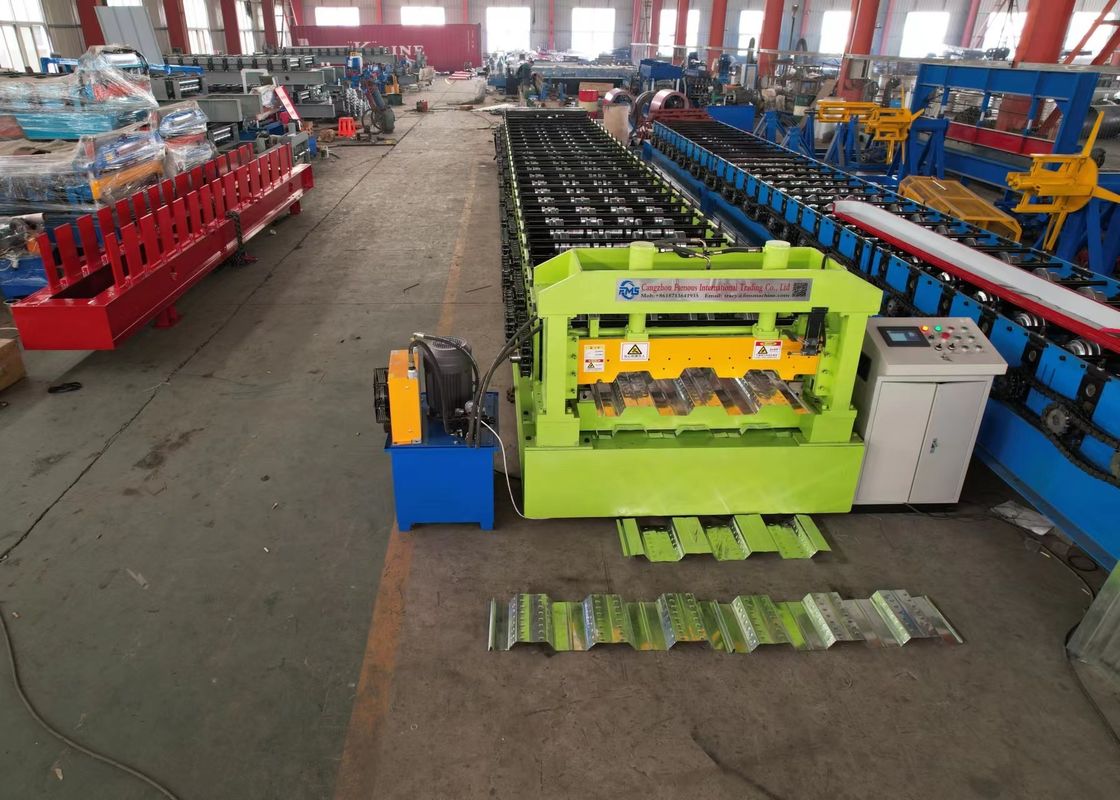

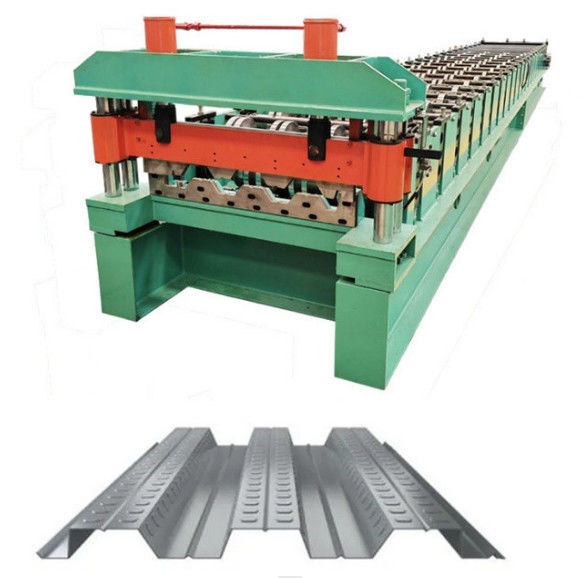

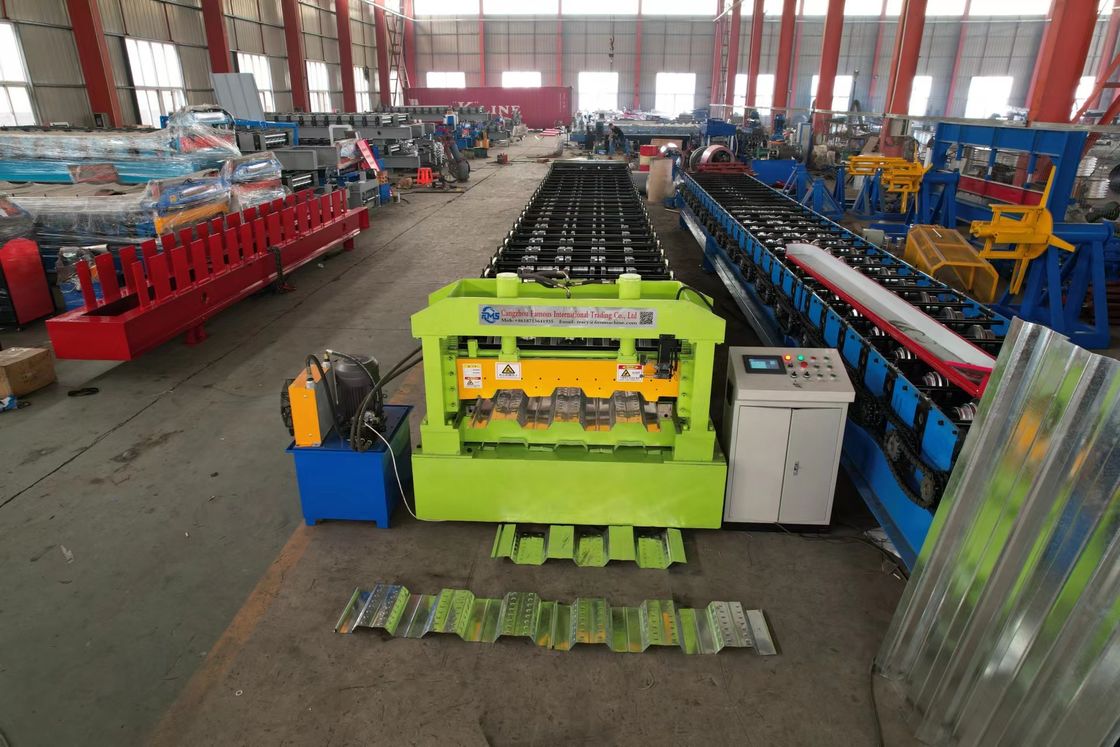

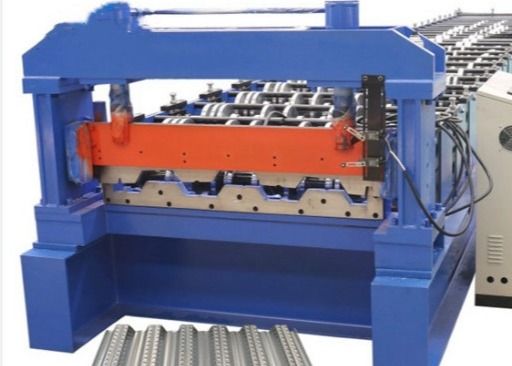

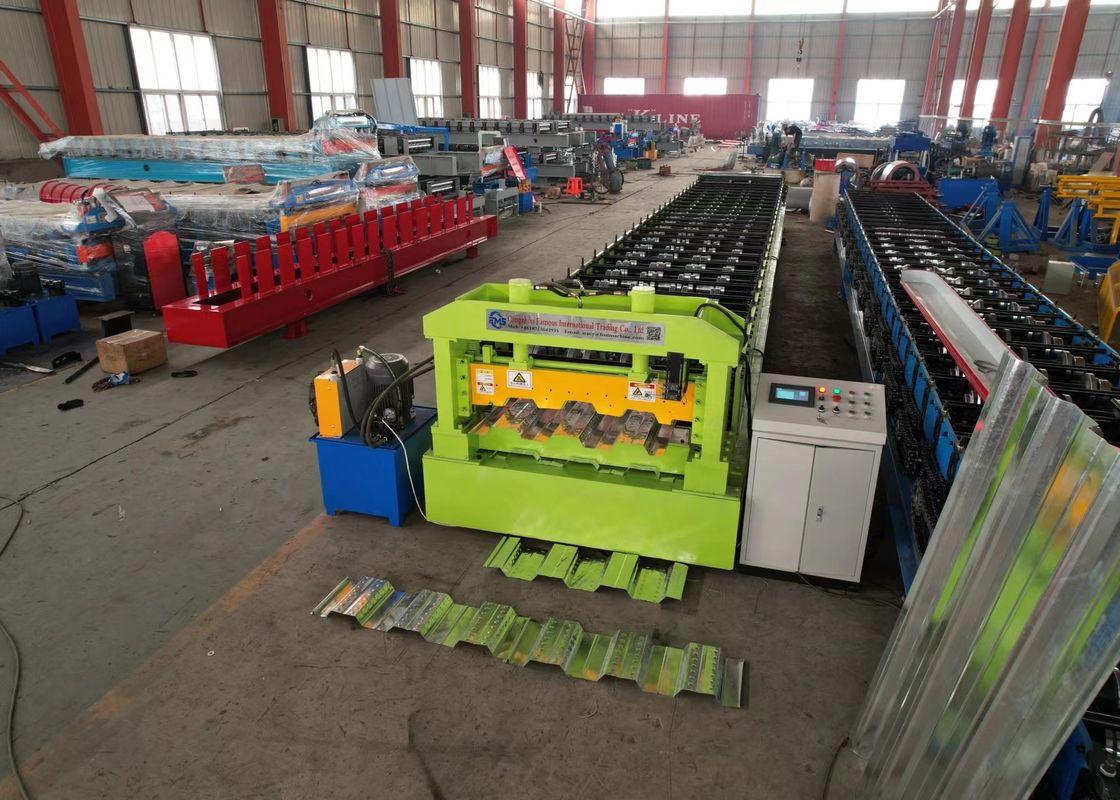

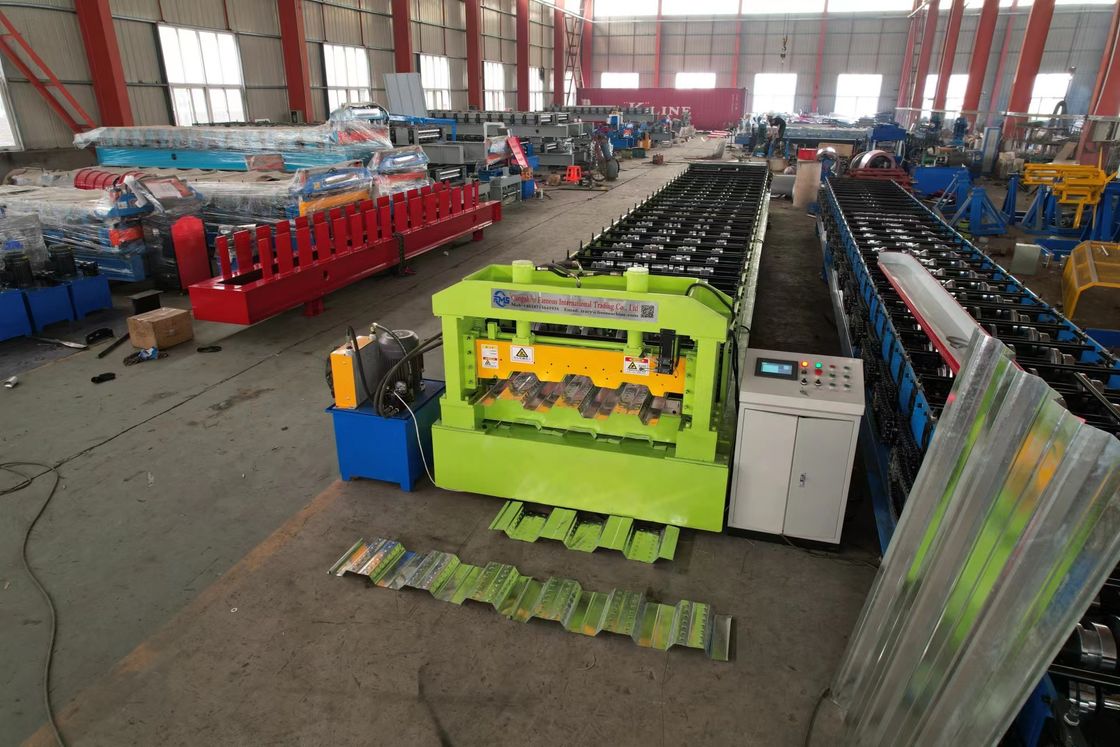

2025 Factory Price Prepainted Galvanized Steel Floor Deck Roll Forming Machine

Product Overview

The steel floor deck roll forming machine is engineered to produce high-quality steel floor decks, also known as floor bearing steel plates. These decks are specifically designed for supporting concrete or insulating membranes in roof and floor systems, providing a structurally efficient solution with high peak strength at a competitive cost.

Technical Specifications

Material Specifications
Material Width	1000/1250mm
Effective Width	600/850/915mm
Material Thickness	0.8-1.5mm
Material Type	Galvanized Steel Strip, Prepainted Galvanised Steel
Yield Strength	245Mpa

Machine Specifications
Shaft Diameter	95mm
Wall Panel Thickness	18mm
Base Specification	H446*199
Main Motor	37KW hydraulic system
Forming Speed	0-10m/min
Forming Station	33 Stations
Blade Material	Cr12 (Die Steel)
Roller Material	45# steel, CNC lathes, Heat Treated, hard Chrome Coated
Speed Regulation	AC Inverter Speed Regulation
Driving Mode	Reduction Motor + Chain Transmission
Cutting Mode	Hydraulic Type, Post-cutting
Cutting Motor	Hydra station/hydraulic motor
Measuring Mode	Photoelectric Encoder
Control Mode	PLC
Operation Mode	Button + Touch Screen
Voltage	380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph
Dimension	15M1.5M1.3M
Machine Weight	16500KG (15500KG)

Warranty & Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts).

Repairs will not be performed even during the guarantee period in the following circumstances:

Damage occurs due to a natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to further movement or shipment after installation

Payment Terms

40% in advance as down payment
60% paid before shipment processing

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 30 days after down payment is received
