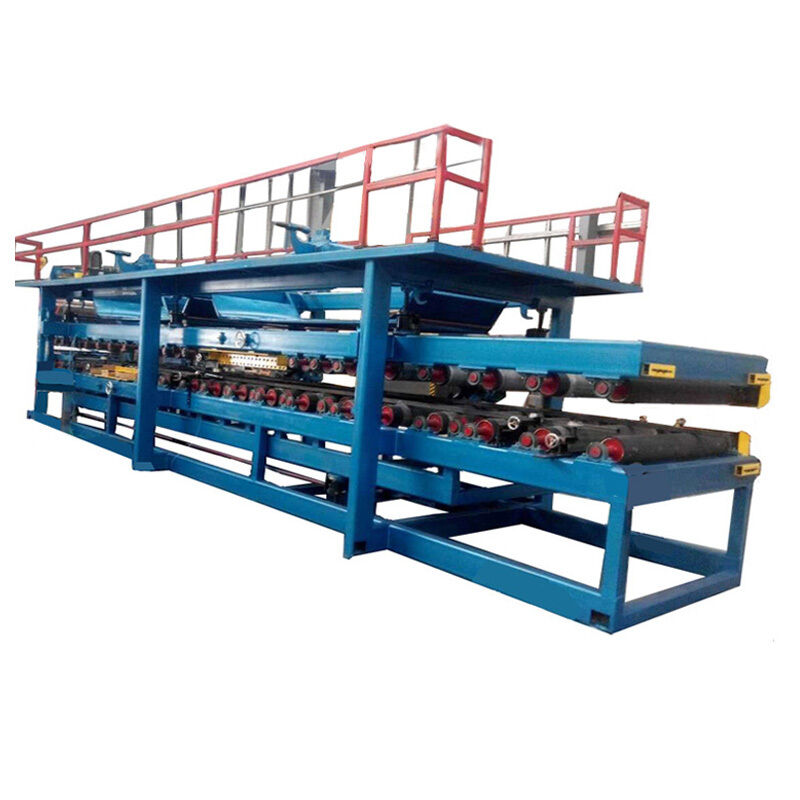

Name: Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Máquina de moldagem de painéis de sanduíche
Price: 40,500.00 USD
Availability: InStock

Para casa > produtos > Máquina de moldagem de painéis de sanduíche >

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Lugar de origem:

China

Marca:

FMS

Certificação:

Número do modelo:

Máquina de moldagem de painéis de sanduíche

Contacte-nos

Solicite um orçamento

Detalhes do produto

Diâmetro do eixo:

70 mm ou como sua exigência

Material dos eixos:

Aço forjado de alta qualidade 45#

Lâmina de corte:

Aço do molde CR12 com tratamento extinto

Velocidade de formação:

5-8m/min

Material da lâmina de corte:

Cr12MOV, Tratamento Térmico

Fonte de energia:

380 V, Trifásico, 50 Hz

Material do eixo:

Alta grau 45# aço, diâmetro 70mm

Grossura:

0,3-0,8 mm

Formando etapas:

11 estações

Poder:

5,5 kW

Largura do Material:

1200mm

Destacar:

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Termos de pagamento e envio

Quantidade de ordem mínima

1 CONJUNTO

Preço

negotiable

Detalhes da embalagem

Despido com filme plástico.

Tempo de entrega

45 dias do worl

Termos de pagamento

T/T, L/C

Habilidade da fonte

20 conjuntos por mês

PRODUTOS CONEXOS

Vídeo

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Obtenha o melhor preço

Vídeo

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

Obtenha o melhor preço

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

Obtenha o melhor preço

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine

This advanced production line is designed for manufacturing EPS rock wool composite boards, a widely used building insulation material for walls, roofs, and floors. The automated system ensures efficient production of high-quality sandwich panels.

Production Process Overview

EPS Board Processing: Precision cutting and trimming operations
Rock Wool Processing: Accurate cutting and systematic paving
Composite Bonding: Hot or cold pressing to bond materials
Final Molding: Formation of specification-compliant composite boards

Equipment Components

EPS Board Processing Unit: Cutting and trimming systems
Rock Wool Processing Unit: Cutting and paving mechanisms
Composite Unit: Bonding and pressing systems
Molding Unit: Final shaping and sizing equipment
Control System: Automated process control

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Thickness Range	50-250mm
Working Speed	5-6m/min
Dimensions	Approximately 34000mm × 2500mm × 2600mm
Total Power	32 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

1-Year Manufacturing Defect Guarantee (excluding electrical parts) from date of purchase.

Warranty Exclusions

Damage caused by natural disasters
Malfunctions due to user error
Issues resulting from unauthorized modifications
Problems occurring after relocation or shipment post-installation

Payment & Delivery Terms

Payment Structure: 40% advance payment, 60% balance before shipment
Delivery: FOB Tianjin Xingang Port
Lead Time: 65 days after receipt of down payment

Frequently Asked Questions

Does one machine produce only one style of panel profile?

No. For wider and double-layer making machines, it can produce more than 6 different types of panels.

What support is provided if the machine breaks down?

12-month warranty period. If parts cannot be repaired, we provide replacements (customer covers express costs). After warranty, we offer technical support and negotiated solutions for the equipment's lifetime.

Can you handle transportation?

Yes, we have extensive transportation experience. Please provide your destination port or address.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide customization?

Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide testing videos for reference, or welcome you to visit our factory and test the machine personally.
